产品名称：Ka波段BUC功率放大器 40W Universal Ka-Band (27.5-31.0 GHz) BUC

产品型号：  ABC40UKA / ABC40UKAF

产品概述：

This unique fi rst ever 40W L-To Full Ka-Band Block Up Converter covers the O3B (27.65-29.1 GHz), Commercial商用 (29.0-30.0 GHz) and Military军用 (30.0-31.0 GHz) frequency bands. M&C (FSK) capability enables trouble shooting, monitoring and controlling the BUC. Unit provides 10MHz reference autosensing feature.

技术特点KEY FEATURES：

¨  Output frequency 27.5-31.0 GHz ¨  Based on GaN technology which enables high effi ciency, low power consumption and high reliability. ¨  Quad- L.O. (electronicaly and manually switchable 26.55, 27.4, 28.05, and 29.05 GHz) ¨  Low power consumption (340W max) ¨  M&C - combined RS-232/485, FSK and Ethernet control (HTTP and SNMP) ¨  L.O. lock, amplifi er and 10MHz LEDs ¨  Built-in redundancy option ¨  Field-exchangeable (F/N) IF connector ¨  Internal 10MHz high stability reference autosensing and controlable (optional) ¨  RoHS compliant

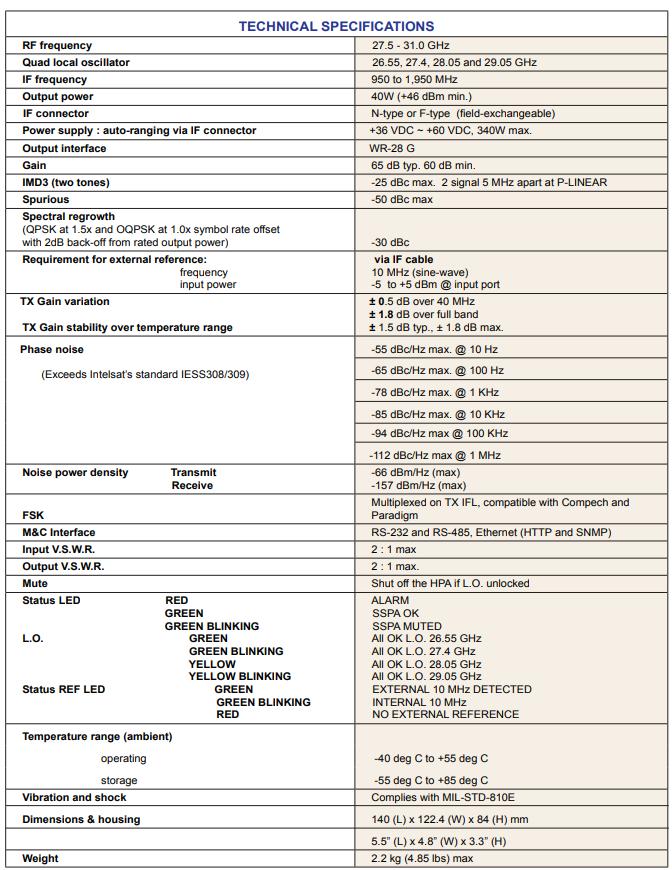

技术数据：

产品外形：
