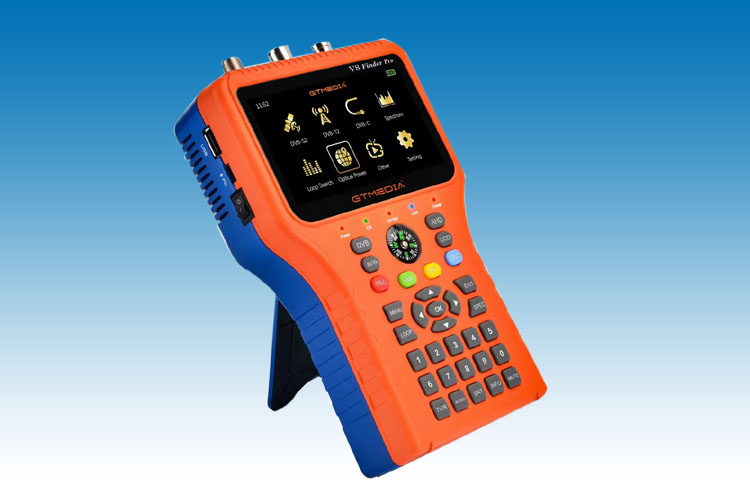

Gstar-V8 Satellite Finder Pro 蓝牙寻星仪 CATV验收测试仪
更新：2023/1/1 16:43:32 点击：
- 产品品牌 Gstar
- 产品型号 Gstar-V8 Satellite Finder Pro
- 产品描述
GTMEDIA V8 Finder Pro 是一款符合 DVB-S2X/S2/S/T2/T/C 和 MPEG-2/4 H.264/H.265（10 位）的手持式组合仪表，具有紧凑的尺寸.......
产品介绍
产品名称： 蓝牙寻星仪
产品型号：Gstar-V8 Finder Pro
产品描述：
GTMEDIA V8 Finder Pro 是一款符合 DVB-S2X/S2/S/T2/T/C 和 MPEG-2/4 H.264/H.265（10 位）的手持式组合仪表，具有紧凑的尺寸、重量轻、直观 用户界面、长电池工作时间和丰富的功能集，该仪表提供安装和验证数字卫星电视服务、天线信号和有线信号到住宅或多户住宅所需的所有功能。
产品特点：
3.5英寸高清液晶屏，
完全符合 DVB-S2X/S2/S、MPEG-2/MPEG-4 标准
支持H.264（8位）硬件解码
数字信号强度和质量测量装置。支持预设所有卫星信息
支持循环搜索
星座分析仪
频谱分析仪
支持自动、盲、手动或 NIT 扫描
锁定信号声音
自动计算 AZ,EL 角度
支持DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
集成扬声器
同时支持 AV 输出和 AV 输入
同时支持 HDMI 输出
支持实时电量显示，低电量提醒
持 Youtube for USB wifi 2.4G
LNB 短路保护
包含 3.7V/5000mAh 锂离子电池
支持Type-C充电接口，支持多协议快充，最大18W
支持TypeC反向充电
通过 USB 端口进行软件升级
携带方便
| Specifications | |
| TRANSMISSION STANDARDS | |
| DVB-S2X/S2/S,DVB-T2/T,DVB-C/ATSC-C,MPEG-2,MPEG-4,H.264/H.265(10 Bit) | |
| Supports softcam: BISS auto roll, PowerVu auto roll, TNT(19.2E) | |
| Support VCM, ACM, multi-stream, T2MI, Multi-PLP | |
| Supports IKS: CCCAM, NEWCAM, MGCAM | |
| SATELLITE INPUT/DEMODULATION | |
| Connector Type | F Type |
| Input Frequency | 950 to 2150 MHz |
| Signal Input Level | ‐65 to ‐25 dBm |
| Band Switch Control | 22KHz |
| LNB Supply | 13V/18V, Max 350mA |
| Demodulation Type |
DVB-S2 QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK |
| Symbol Rate | 2<Rs<45Mband(SCPC/MCPC) |
| DVB-T2/T/Cable INPUT/DEMODULATION | |
| Connector Type | Female Type |
| Input Frequency | 48 to 862 MHz |
| Signal Input Level | ‐80 dBm(MAX) |
| ANT Supply | 5V DC @ 120mA MAX |
| Demodulation Type | QPSK,16QAM,32QAM,64QAM,128QAM,256QAM |
| LCD FEATURES | |
| LCD Type | TFT Transmissive |
| Number of Dots | 800 RGB(H) *480(V) |
| Active area (W*H) | 95.04*53.86mm |
| AV output interface | |
| Connector Type | 3.5 mm jack |
| Video Output | CVBS |
| Audio Output | Stereo Audio L/R output |
| HDMI output connecter | |
| Format | HDMI 1.3a |
| AV input interface | |
| Connector Type | 3.5 mm jack |
| Video Input | CVBS |
| Audio Input | Stereo Audio L/R input |
| AHD input interface | |
| Connector Type | BNC Female |
| Impedance | 75Ω |
| Frequency Range | DC～2GHz |
| Video input support | NTSC/PAL, 720P/1080P |
| AUDIO/VIDEO PROCESSING | |
| Video decompression | MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@l5 HD resolution, H.264 / H.265 MP&HP@L4, HW JPEG decoder |
| Resolving rate | PAL-25 frame@7200*576, NTSC -30 frame@720*480 |
| Singnal compatibility | Support conversion for different video formats |
| Video Format | 4:3, 16:9, By Pan & Scan and Letter Box conversion |
| Audio Decompression | MPEG-1 Layer I/II, MPEG-2 Layer I/II |
| Audio Output Mode | Stereo, Mono, R/L |
| DATA SERVICE PORT | |
| Conector | USB |
| Data Protocol | USB 2.0 interface |
| File Management System | NTFS, FAT32, FAT16 |
| File Format |
Media:TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp Audio: wma,mp3 Photo: jpg,jpeg,bmp,img |
| PVR Option | Support recording TS files |
| WIFI Option | Support networking via USB WIFI |
| POWER SUPPLY | |
| Li-Lon Battery | 7.4V/4000mAh(The machine behind labeling shall prevail) |
| Adapter | OUTPUT: DC 9V/2.5A, INTUPT:100～240VAC 50/60Hz(Will be subject to actual configuration) |
| Power Consumption | Max.10W |
| PHYSICAL CHARACERSTICS | |
| Product Dimension Size(W*D*H) | 123*204*45(mm) |
| Product Net Weight | 0.6kg |
| Packing box size(W*D*H) | 260*200*57(mm) |
| Package weight | 0.85kg |
| Temperature | Operation 0～+45℃; Storage -10~+60℃ |
| Humidity | 20~90%, non-condensed |
