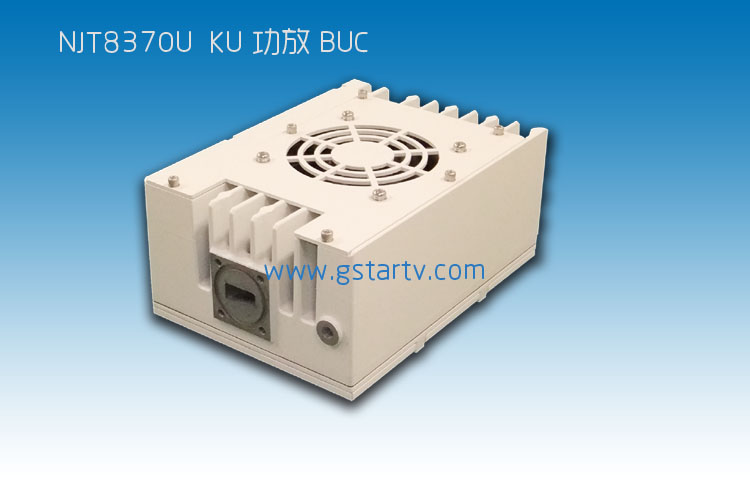

产品名称:Ku波段GaN 25W BUC功率放大器

产品型号:NJT-8370系列

产品特点：

      NJRC公司制造的高频微波器件如C波段和Ku波段系列BUC功放  LNB高频头向着高频段、多频段、多卫星接收、小尺寸方向发展，其小功耗、锁相环本振、高增益以及由耐恶劣环境的材料制造的特点也成为高品质卫星高频头的衡量指标。

      NJRC公司制造的高频微波器件如C波段和Ku波段系列BUC功放  LNB高频头都可以在-400C至+650C，相对湿度在0-**，降雨等级在60mm/Hour环境下工作。所有的产品在出厂时都经过美国军事质量控制标准的完全测试，平均故障间隔时间大于8000小时

技术数据

Items	Parameters
RF Output Interface	Waveguide, WR75 (with Groove)
IF Input Interfance	Coax. Connector, N-type Female (50 Ω)
	Coax. Connector, F-type Female (75 Ω)
Saturation Output Power (Psat)	+42 dBm min. @ +25 ℃e
ACPR	-30 dBc typ., 26 dBc max. @ Pout = +42 dBm
Small Signal Gain	72 dB nom., 66 dB min.
Input Power Voltage Requirement	+48 VDC (+36 to +60 VDC) [DC Power Products]
	90 to 264 VAC [AC Power Products]
Power Consumption	180 W typ. @ Pout = +42 dBm
	200 W typ., 230 W max. @ Psat
Operating Temperature Range	Operating Guarantee Range: -40 to +75 ℃
	Performance Guarantee Temperature Range: -40 to +60 ℃
Waterproof / Dustproof (IP-code)	IP67
Weight	2.5 kg
Dimension	(L) 180 x (W) 130 x (H) 80 mm
(w/o Interfaces & Screws)

产品选型指南：

Model No.	RF Frequency Output Power	IF Connector	Power Requirement	M&C Option
NJT8370UNMK	13.75 to 14.5 GHz +44 dBm min.@ Psat(25W)	N-type(50Ω)	Power Supplied	FSK Communications M&C
NJT8370UFMK		F-type(75Ω)	from MS Connector
NJT8370UNMKA		Power Supplied
			by AC/DC PSU
NJT8370UFMKA		F-type(75Ω)	PSU Page Link
NJT8370UNMR		N-type(50Ω)	Power Supplied	RS-232C M&C
NJT8370UFMR		F-type(75Ω)	from MS Connector
NJT8370UNMRA		Power Supplied
			by AC/DC PSU
NJT8370UFMRA		F-type(75Ω)	PSU Page Link
