X1000HA,X波段LNB

更新:2018-4-26 16:02:58      点击:
  • 产品品牌   Norsat
  • 产品型号   X1000HA X PLL
  • 产品描述

    诺赛特品牌的X波段高频头,可靠稳定...

产品介绍

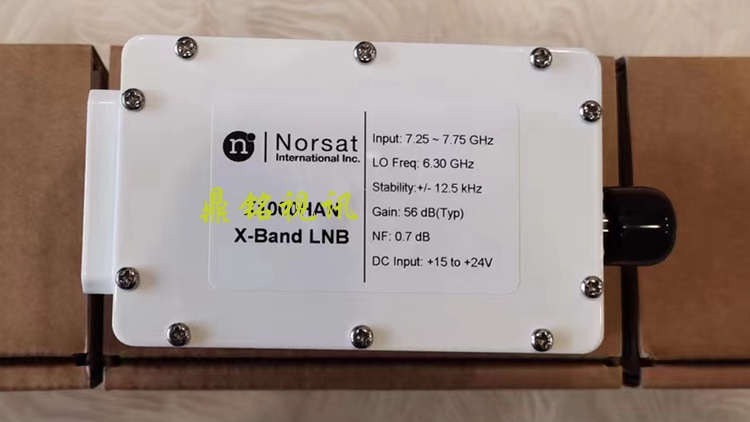

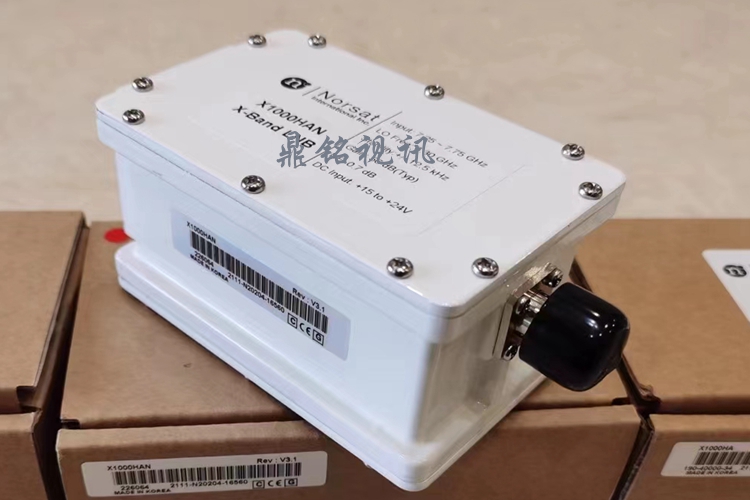

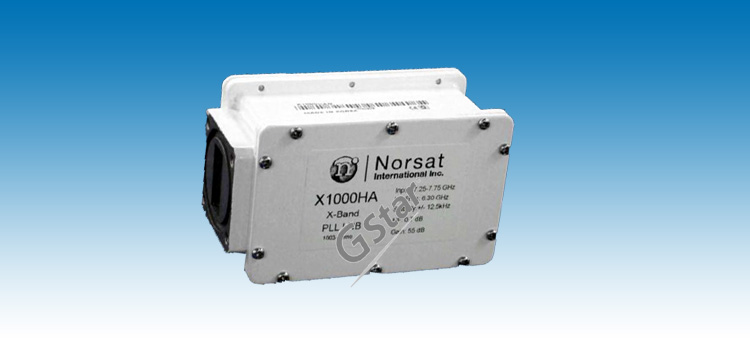

X波段高频头



产品名称:X波段高频头

产品型号:X1000HA

产品简介:

Norsat品牌推出的X波段LNB品质可靠广泛应用到军事,通信,通讯领域、

产品指标:



Noise Temperature

0.7dB

L.O. Stability

±25 kHz

Phase Noise

-75 dBc/Hz at 1 kHz



-85 dBc/Hz at 10 kHz



-95 dBc/Hz at 100 kHz

Input VSWR

2.0: 1

Output VSWR

2.0: 1

Input Frequency

7.25to 7.75GHz

L.O. Frequency

6.3GHz

Output Frequency

950 to 1450 MHz

Conversion Gain

56 dB

Output P1dB

5dBm

Power Requirement

+15 t0 +24 V supplied through center conductor of IF cable

Current drain

230 mA

Input Waveguide

WR 112

Dimensions

137 (L) x 70 (W) x 59 (H) mm
(5.4 x 2.8 x 2.3 in)

Weight

600g/21.1 oz

Ext Ref Frequency
10 MHz (sine-wave), -10 to 0 dBm

Temperature Range

-40°C to +60°

X波段LNB

 我们还可提供 XT1000 X EXT REF,XT1000H X Dual PLL/ & EXT REF 两种
