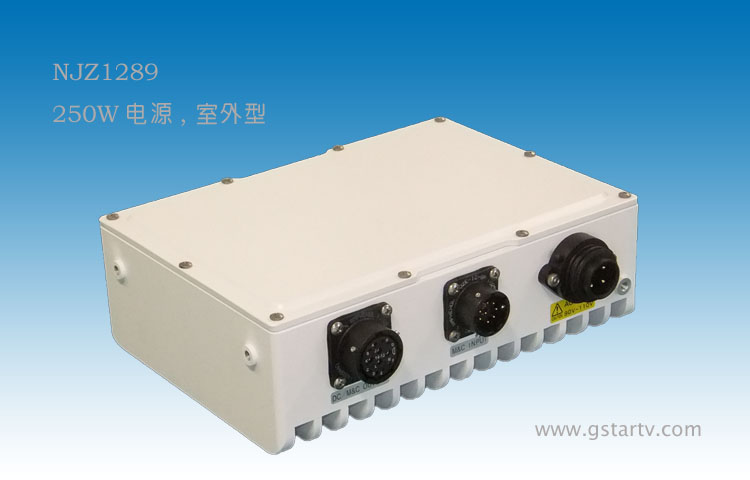

NJZ1289 250W, 室外型BUC功放电源 NJZ1289 250W PSU, Outdoor type
- 产品品牌 JRC
- 产品型号 NJZ1289
- 产品描述

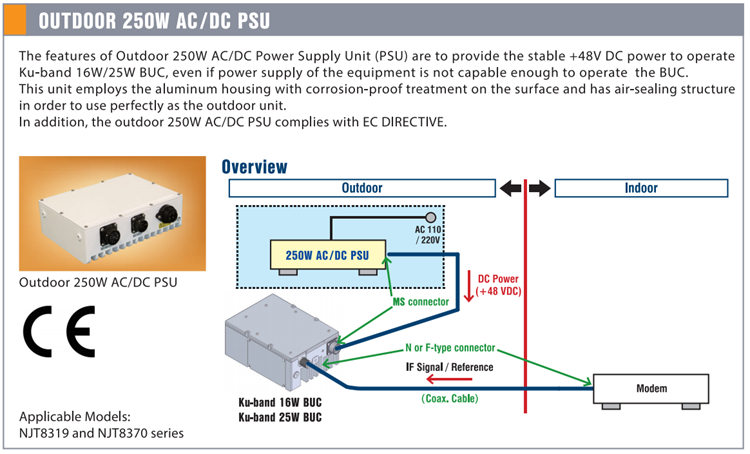

NJZ1289 250W,UBC功放室外电源 PSU, Outdoor BUC type输出直流电量: 250 W max.适用于NJT8319series → ...
产品名称：室外型BUC功放电源
产品型号：NJZ1289 250W,
产品描述：NJZ1289 250W,UBC功放室外电源 PSU, Outdoor BUC type输出直流电量: 250 W max.适用于NJT8319series →
NJT8370series →系列放大器...
产品特点Features：
交流/直流电源规格概述 Specifications Overview
输入交流电源电压: 100 ~ 240 VAC Input AC Power Voltage: 100 to 240 VAC
输出直流电源电压: +48 VDC Output DC Power Voltage: +48 VDC
输出直流电量: 250 W max. Output DC Power Capacity: 250 W max.
其他Others
配备功率因数矫正（PFC） Power Factor Correction (PFC) Equipped
对流空气冷却 Convection Air Cooling
符合RoHS标准 RoHS Compliance
产品概述：
技术参数
| Items | Parameters | ||
| Input AC Power Interface | C016 20C003 200 12 / Amphenol | ||
| Output DC Power Interface | PT02E-14-12S(025) / Amphenol | ||
| Input AC Power Voltage Range | Specified Value: 100 to 240 VAC | ||
| Maximum Rated Value: 90 to 264 VAC | |||
| Input AC Power Frequency | 50 / 60 Hz | ||
| Input AC Power Current | 3.6 A max. | ||
| Output DC Power Voltage | +48 V nom. | ||
| Output DC Power Capacity | 250 W max. | ||
| Operating Temperature Range | -40 to +55 ℃ | ||
| Waterproof / Dustproof (IP-code) | IP67 | ||
| Weight | 1.6 kg | ||
| Dimensions | (L) 186 x (W) 133 x (H) 60 mm (w/o Interfaces & Screws) | ||
